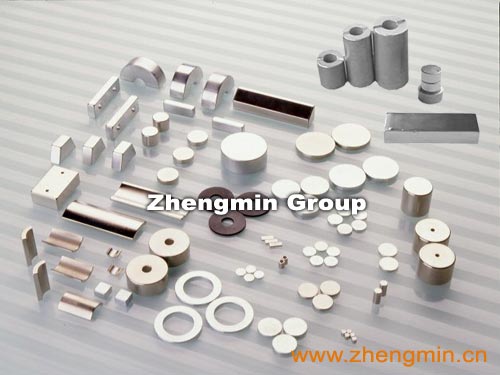

NdFeB Magnet


Any size is available on request
Magnetic property form of NdFeB magnet

Grade Br Hcb Hcj (BH)max Operating
Temperature
Temperature
coefficient
Density
mT KGs KOe KA/m KOe KA/m MGOe KJ/m3 Br
%
IHc
%
g/m3
N33 11.4-11.8 1.14-1.18 10.3-11.0 820-876 22 955 31-33 248-264 80 0.12 0.6 7.3-7.5
N35 11.8-12.2 1.18-1.22 10.5-11.5 836-915 12 955 33-35 263-279 80

N38

12.3-12.6 1.23-1.26 11.0-12.2 876-969 12 955 36-38 287-303 80
N40 12.6-13.1 1.26-1.31 11.0-12.2 876-969 12 955 38-40 303-318 80
N42 13.1-13.7 1.31-1.37 11.0-11.2 876-969 12 955 42-45 334-358 80
N35M 11.8-12.2 1.18-1.22 10.5-11.5 836-915 14 1114 33-35 263-279 100 0.12 0.6 7.4-7.6
N38M 12.3-12.6 1.23-1.26 11.0-12.2 876-969 14 1114 36-38 287-303 100
N40M 12.6-13.1 1.26-1.31 11.5-12.2 915-969 14 1114 38-40 303--318 100
N33H 11.4-11.8 1.14-1.18 10.3-11.0 820-876 17 1353 31-33 248-264 120 0.12 0.6 7.4-7.7
N35H 11.8-12.2 1.18-1.22 10.5-11.5 836-915 17 1353 33-35 263-279 120
N38H 12.3-12.6 1.23-1.26 11.0-12.2 876-969 17 1353 36-38 287-303 120
N40H 12.6-13.1 1.26-1.31 11.5-12.2 915-969 17 1353 38-40 303-318 120
N33SH 11.3-11.7 1.13-1.17 10.3-11.5 820-915 20 1592 31-33 248-264 150 0.11 0.55 7.4-7.8
N35SH 11.8-12.2 1.18-1.22 10.5-11.5 836-915 20 1592 33-35 263-279 150
N38SH 12.3-12.6 1.23-1.26 11.0-12.2 876-969 20 1592 36-38 287-303 150
